Precision flow control

Swagelok fittings and valves for pressure decisions that cannot drift.

Every tube run, valve station and gas panel depends on small contact surfaces staying consistent under real operating conditions. Swagelok helps engineers specify components, installation practices and documentation paths before the first line is bent.

View Catalog Review the standard
316 SS options Tube fitting focus Valve review support

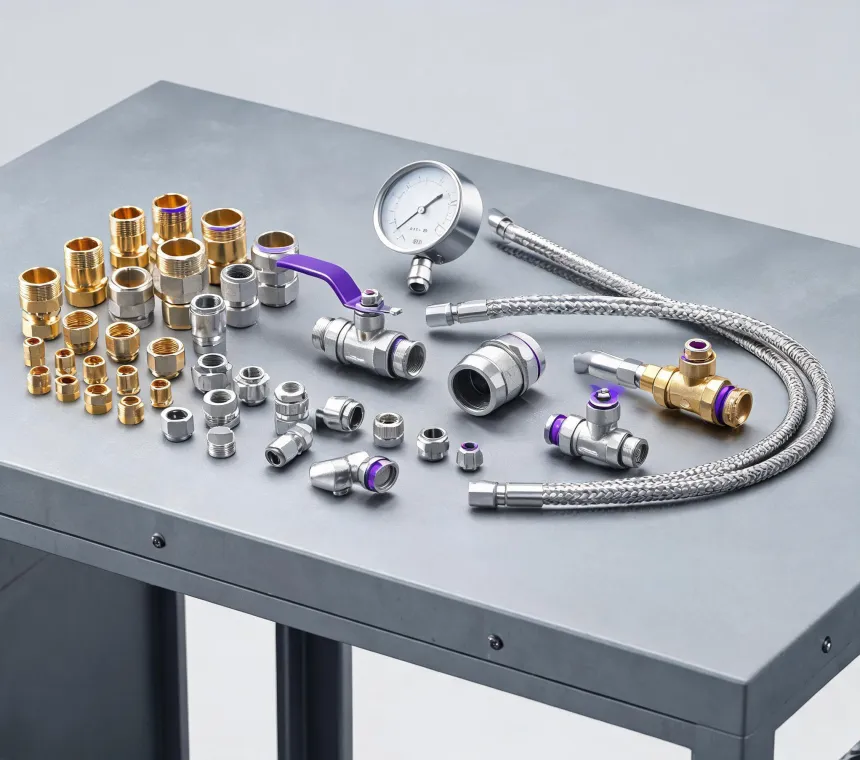

Swagelok tube fittings and valves on a clean industrial bench
Application pressure points

Fluid system teams use Swagelok where leakage, material choice and maintenance access matter.

These cards represent the recurring conditions behind fitting and valve selection: clean service, vibration, thermal change, operator access and the need to document a repeatable installation method.

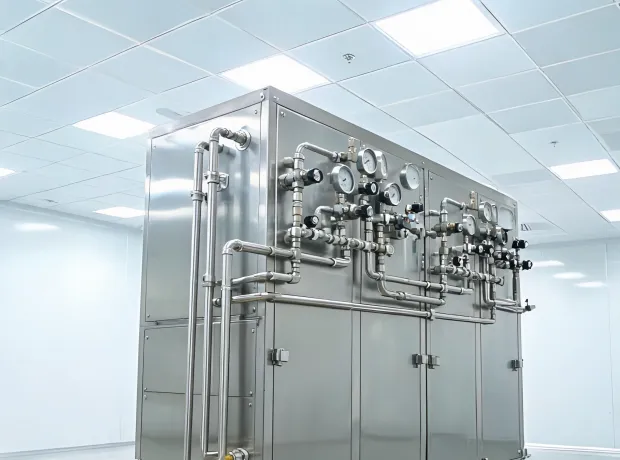

Semiconductor gas cabinet with precision fittings

Semiconductor Gas Panels

Clean tubing paths, material traceability and tight connection practices for high-purity distribution.

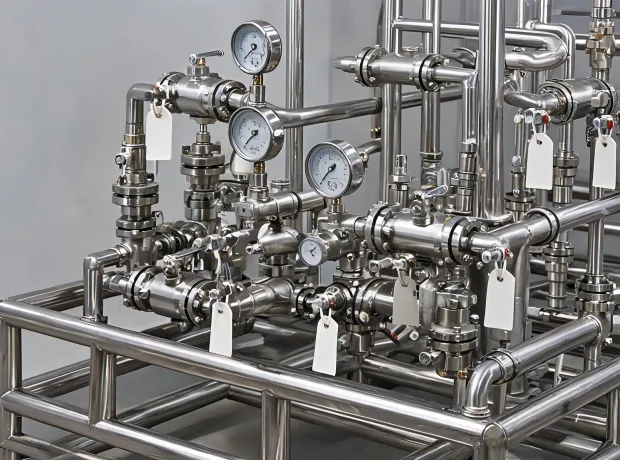

Hydrogen and energy valve manifold

Hydrogen & Energy Skids

Pressure control assemblies where valve function, venting and tube support are reviewed together.

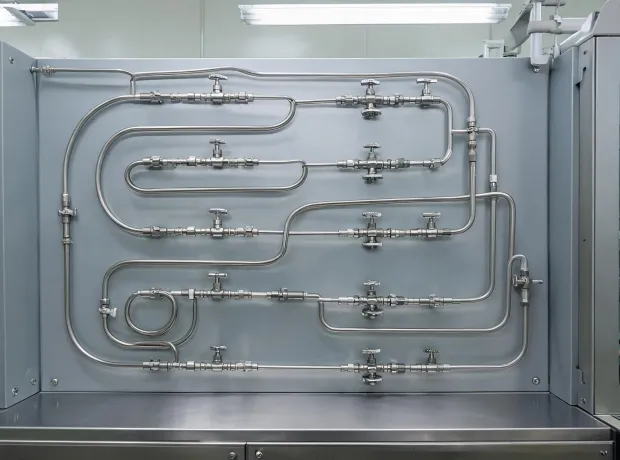

Analytical instrument tubing and valves

Analytical Instrumentation

Repeatable sample paths that protect response time while keeping connections serviceable.

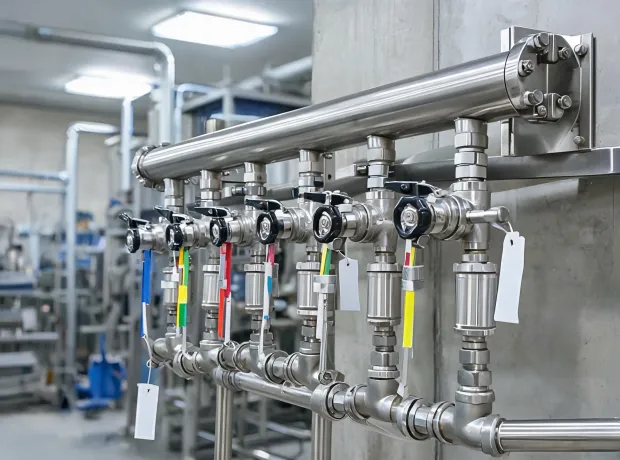

Process utility piping with valves and fittings

Process Utility Rooms

Standardized valve stations for maintenance crews working across compressed air, gas and liquid service.

Registered support for specified components

Keep the assembly name, tube size, alloy, pressure class and installation record connected to the same request so replacement and service conversations stay exact.

Register a specification

Service and replacement review

Send system conditions for review
Material review Installation record Replacement routing
Engineering downloads

Compact references for fitting, valve and assembly conversations.

PDF

Tube Fitting Selection Guide

Connection style, tube preparation and material questions to confirm before purchase.

1.8 MB Request
PDF

Ball and Needle Valve Checklist

Pressure, temperature, media and actuation notes for valve specification review.

940 KB Request
CAD

Manifold Layout Starter Pack

Dimensional prompts for compact panels, gauge branches and service clearance.

2.4 MB Review

"The difference shows up before the installation begins. Swagelok asks about media, tube condition, access, torque method and replacement expectations, so our maintenance team receives a component recommendation that matches the actual panel."

Start with the system facts

Send the pressure range, alloy and connection details for a focused recommendation.

Use the form to describe tube size, process media, pressure, temperature, installation environment and whether the request is for a new build, maintenance replacement or documentation cleanup.

  • Fitting and valve selection notes
  • Tube preparation and assembly guidance
  • Material and pressure class review

Request Fluid System Support

Send the media, pressure range, tube size, material, connection type and installation notes. Swagelok support will route the request to the right fitting, valve or assembly path.
